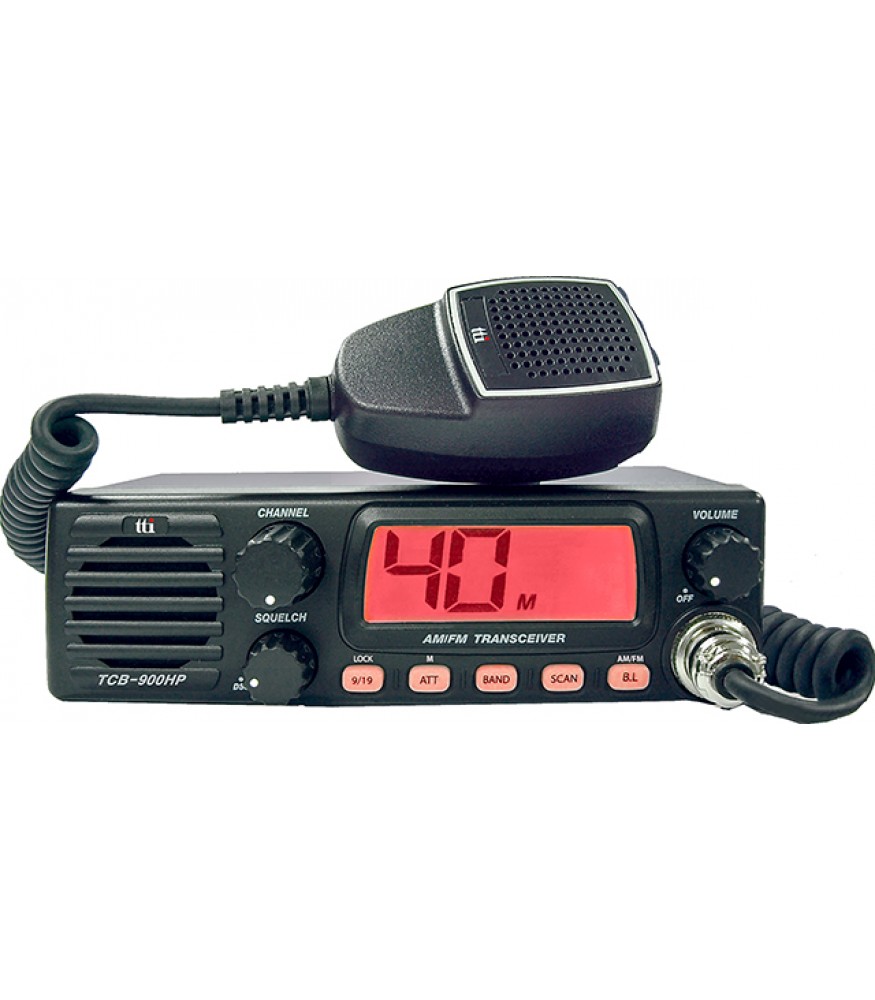

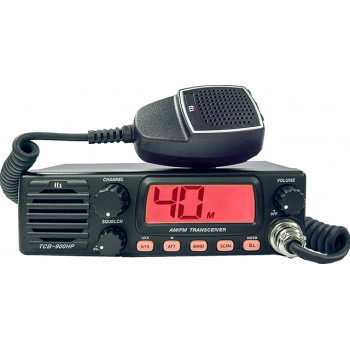

TTI TCB 900 HP export

TTI TCB 900 HP export CBRadio AM / FM 20 Watt, dual voltage 12/24Volt input

De TTI TCB 900 27 Mc radio verkopen we sinds januari 2013.
Sinds 2020 is de 900 High Power versie te krijgen met maar liefst 20 watt.

De nieuwe High Power versie heeft keuze uit 7 kleuren voor het display.
Is ook bijzonder omdat het een van de weinige CBRADIO's met 20 watt en 24 volt!

Met deze 900 HP export versie kom je zeker verder dan overige TTI modellen.


 Zeer ondiep

 Goede speaker aan voorkant

 12 en 24 volt

  20 watt

Features:

up to 20W Output power

Front mounted speaker

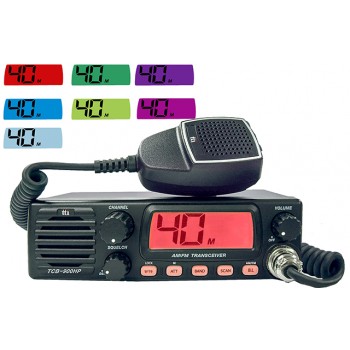

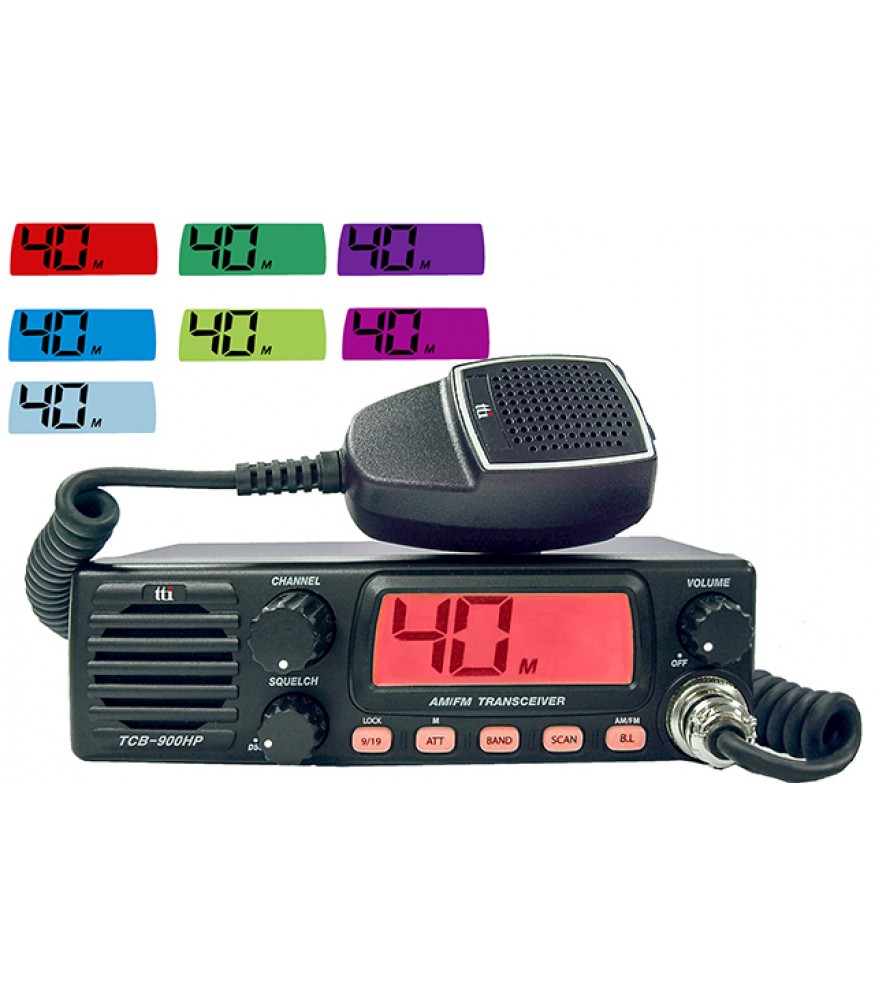

7 kleuren keuze display

Short Body

DIN size

12/24V input

Multiple bands for usage in most EU countries

AM/FM Operation (subject to country regulation)

DSS (Dynamic Squelch System)

Multi-Colour Backlighting

Emergency Channel(9/19) / Keypad Lock function button

Microphone Gain

Attenuation

Scan function

Speaker Mute

Menu Mode (Microphone Gain, Call tone, Beep Tone On/Off, TOT, Backlight Dimmer)

Dimension (W x H x L) : 170 x 51 x 94mm

Technical specifications:

Channel: 40

Frequency Range: 26.965 MHz - 27.99125 MHz (26.965 MHz - 27.405 MHz (CEPT),

Operating Mode: F3E (FM), A3E (AM)

Frequency Control: PLL Synthesizer

Frequency Tolerance: 0.002%

Operating Temperature Range: -10 to 55 Degrees Celsius

Microphone: 6 Pin plug in type

Antenna Connector: SO239 Type

Weight: 978.5g

Power Output: Duty cycle 10%  8 Watts @13.8V DC EXPORT VERSIE

Modulation: AM (85% to 95%), FM (1.8KHz +- 0.2KHz)

Frequency Response: 300Hz to 3000Hz

Output Impedance: 50 ohms, Unbalanced

Harmonic Suppression: Less than -54dBm

Current Drain: AM Full Mod. 1.6A Max

Receiving system: Dual conversion super-heterodyne

IF Frequencies: Double Conversion 1st 10.695MHz / 2nd 455KHz

Sensitivity: 0.7uV for 10dB (S+N)/N in AM, 0.5uV for 20dB SINAD in FM mode

Audio Output Power: 4.0W @ 8 ohm

Audio Distortion: Less then 8% @ 1KHz

Image Rejection: More than 60dB

Adjacent Channel Rejection: More than 60dB

Conducted Spurious: Less than -57 dBm

Frequency Response: 300 to 2500Hz

Built-in Speaker: 8 ohms, round

Squelch: Adjustable; Threshold less than 1 microvolt, DSS; Less than 2 microvolt
